型號
|
產品名稱
|

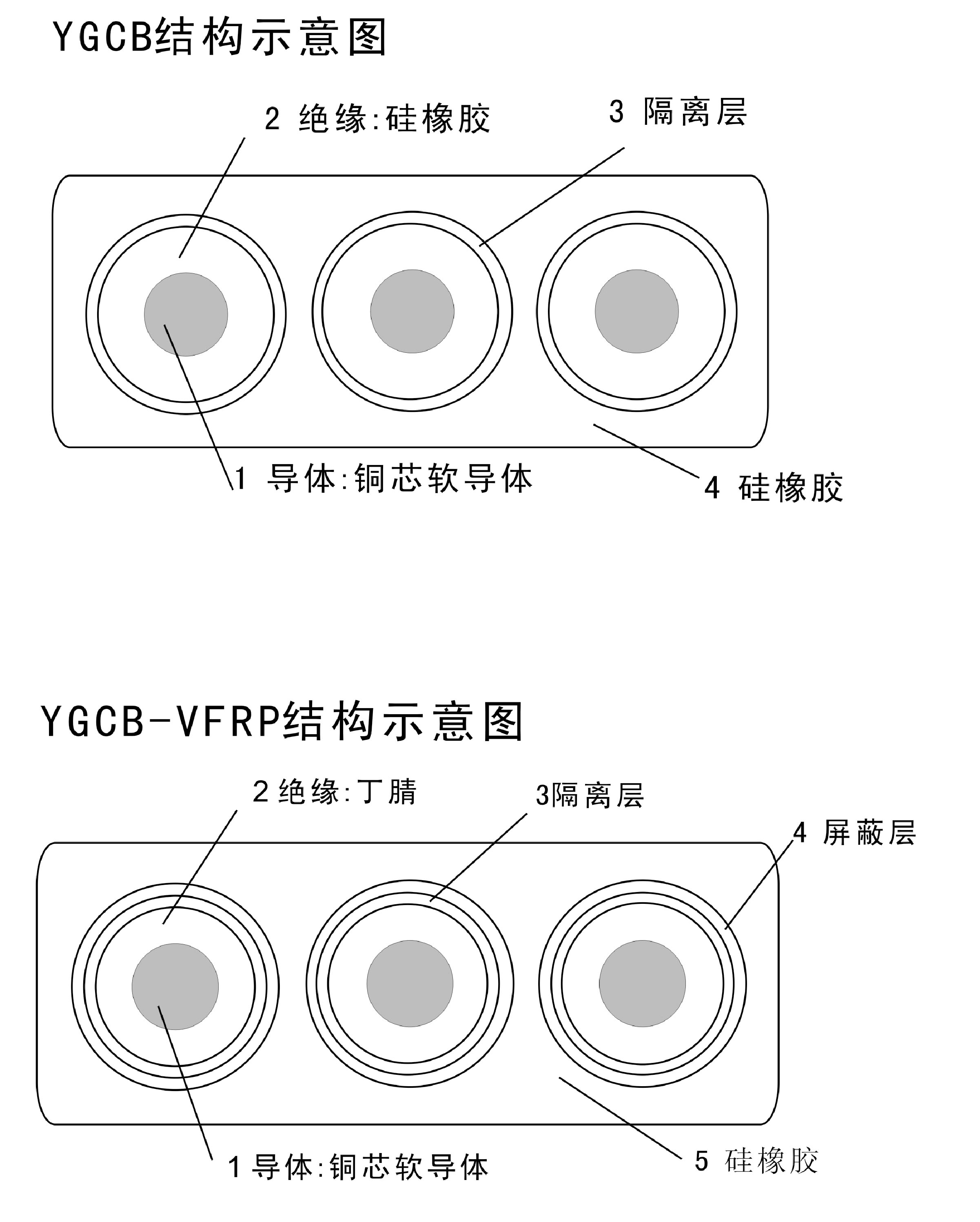

YGGB
|
硅橡膠絕緣和護套移動用扁平軟電纜
|
YGCB-VFR
|
丁腈絕緣硅橡膠護套移動用扁平軟電纜
|
YGCB-AF46R
|
F46絕緣硅橡膠護套移動用扁平軟電纜
|
YGCPB
|
硅橡膠絕緣和護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
|
YGCB-VFRP
|
丁腈絕緣硅橡膠護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
|
YGCB-AF46RP
|
F46絕緣硅橡膠護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
|
代號
|
代號含義
|
Y
|
移動用系列
|
G
|
硅橡膠絕緣或護套
|
VF
|
丁腈絕緣或護套
|
B
|
扁型
|
P
|
銅絲(鍍錫銅絲)屏蔽
|
F46
|
聚全氟乙丙烯F46
|
線芯×標稱截面(mm2)
|
導體結構(根數×直徑)
mm |
外型尺寸(mm)
|
電纜參考重量(kg/m)
|
載流量(A)
|
||
YGCB、YGCB-YVFR
|
YGCPB
|
YGCB
|
YGCPB
|
YGCB
|
||
2×1.5
|
48×0.20
|
12.4×6.8
|
|
|
|
|
2×2.5
|
51×0.25
|
15.0×7.8
|
|
|
|
|
2×4
|
82×0.25
|
16.8×9.0
|
|
|
|
|
2×6
|
123×0.25
|
19.2×10.9
|
|
|
|
|
2×10
|
204×0.25
|
22.5×12.8
|
|
|
|
|
2×16
|
323×0.25
|
25.2×14.9
|
|
|
|
|
2×25
|
513×0.25
|
29.5×17.2
|
|
|
|
|
2×35
|
722×0.25
|
32.8×19.1
|
|
|
|
|
2×50
|
1026×0.25
|
37.6×21.5
|
|
|
|
|
2×70
|
1406×0.25
|
42.6×24.3
|
|
|
|
|
2×95
|
486×0.50
|
48.3×27.3
|
|
|
|
|
2×120
|
608×0.50
|
53.8×29.1
|
|
|
|
|
2×150
|
760×0.50
|
59.3×32.2
|
|
|
|
|
3×1.5
|
48×0.20
|
19.1×8.3
|
20.7×8.8
|
0.2356
|
0.275
|
20
|
3×2.5
|
51×0.25
|
21×8.9
|
23.3×9.7
|
0.2915
|
0.381
|
27
|
3×4
|
82×0.25
|
24.1×10.3
|
25.4×10.8
|
0.3994
|
0.481
|
38
|
3×6
|
123×0.25
|
26.9×11.3
|
29.8×12.2
|
0.5049
|
0.657
|
47
|
3×10
|
204×0.25
|
32.1×12.7
|
35.1×13.8
|
0.7078
|
0.903
|
69
|
3×16
|
323×0.25
|
36.3×14.1
|
36.5×14.8
|
0.9547
|
1.137
|
90
|
3×25
|
513×0.25
|
42.8×16.8
|
41.3×16.3
|
1.409
|
1.555
|
121
|
3×35
|
722×0.25
|
49.5×19
|
46.7×18.9
|
1.8423
|
2.028
|
147
|
3×50
|
1026×0.25
|
55×21.3
|
61.5×23.5
|
2.4624
|
2.963
|
185
|
3×70
|
1406×0.25
|
62.6×24.2
|
70.6×28.2
|
3.3422
|
3.743
|
237
|
3×95
|
486×0.50
|
65.6×25.2
|
79.9×31.3
|
4.1244
|
4.982
|
262
|
3×120
|
608×0.50
|
72.3×28.1
|
84.7×32.2
|
5.1622
|
5.997
|
292
|
3×150
|
760×0.50
|
82×32
|
91.6×34.1
|
6.4914
|
7.272
|
322
|
3×185
|
945×0.50
|
91.3×35.1
|
101.5×37.8
|
7.8843
|
8.047
|
343
|
3×240
|
1221×0.50
|
96.4×36.8
|
107.2×40.4
|
9.6724
|
10.849
|
397
|
3×300
|
1525×0.50
|
103×39
|
121.6×45.2
|
11.6967
|
13.355
|
456
|
4×1.5
|
48×0.20
|
24.5×8.3
|
26.6×8.8
|
0.304
|
0.383
|
19
|
4×2.5
|
51×0.25
|
27×8.9
|
30×9.7
|
0.378
|
0.497
|
27.5
|
4×4
|
82×0.25
|
31.6×10.3
|
32.7×10.8
|
0.5257
|
0.625
|
36
|
4×6
|
123×0.25
|
35.6×11.3
|
38.3×12.2
|
0.6695
|
0.854
|
44
|
4×10
|
204×0.25
|
41.8×12.7
|
45.7×13.8
|
0.7279
|
1.186
|
63
|
4×16
|
323×0.25
|
48.4×15.1
|
47.3×14.8
|
1.3334
|
1.491
|
82
|
4×25
|
513×0.25
|
56.7×16.8
|
53.1×16.3
|
1.871
|
2.008
|
105
|
4×35
|
722×0.25
|
64.7×18.8
|
61.2×18.9
|
2.429
|
2.679
|
142
|
4×50
|
1026×0.25
|
73.2×21.3
|
80.5×23.5
|
3.2831
|
3.907
|
169
|
4×70
|
1406×0.25
|
81.8×24.2
|
84.7×23.5
|
4.4059
|
4.89
|
206
|
4×95
|
486×0.50
|
87.8×27.2
|
100.4×29.8
|
5.7292
|
6.584
|
240
|
4×120
|
608×0.50
|
95.4×29.1
|
106.8×32.2
|
6.967
|
7.902
|
275
|
4×150
|
760×0.50
|
109×34
|
114.4×34.1
|
8.9143
|
9.41
|
317
|
4×185
|
945×0.50
|
121.4×37.1
|
129.2×37.8
|
10.813
|
11.472
|
338
|
3×2.5+1.5
|
51×0.25/48×0.20
|
24×8.3
|
29.2×9.7
|
0.292
|
0.48
|
27.5
|
3×4+2.5
|
82×0.25/51×0.25
|
26.2×8.9
|
31.6×10.8
|
0.61
|
0.59
|
36
|
3×6+4
|
123×0.25/82×0.25
|
30.6×10.3
|
37×12.2
|
0.508
|
0.84
|
44
|
3×10+6
|
204×0.25/123×0.25
|
34.2×11.3
|
43.2×13.8
|
0.647
|
1.15
|
63
|
3×16+10
|
323×0.25/123×0.25
|
40.2×12.7
|
45.8×14.8
|
0.902
|
1.5
|
82
|
3×25+16
|
513×0.25/204×0.25
|
47×15.1
|
52.7×16.3
|
1.306
|
2.06
|
105
|
3×35+16
|
722×0.25/204×0.25
|
55.1×16.8
|
57.5×18.9
|
1.84
|
2.5
|
142
|
3×50+25
|
1026×0.25/323×0.25
|
62.5×18.8
|
72.8×23.5
|
2.39
|
3.67
|
169
|
3×70+35
|
1406×0.25/513×0.25
|
71×21.3
|
80.1×25.5
|
3.01
|
4.74
|
206
|
3×95+35
|
486×0.50/722×0.25
|
79×24.2
|
91×29.8
|
4.05
|
6.08
|
240
|
3×120+50
|
608×0.50/722×0.25
|
85×27.2
|
102.2×32.2
|
5.21
|
7.67
|
275
|
3×150+70
|
760×0.50/1406×0.25
|
92×29.1
|
108.7×34.1
|
6.15
|
9.11
|
317
|
3×185+95
|
945×0.50/486×0.50
|
105×34
|
123×37.8
|
8.32
|
11.31
|
338
|
5×1.5
|
48×0.20
|
30.9×8.9
|
32.5×8.8
|
0.406
|
0.471
|
18
|
5×2.5
|
51×0.25
|
34.7×9.5
|
36.8×9.7
|
0.5104
|
0.612
|
23.5
|
5×4
|
82×0.25
|
39.5×10.3
|
39.9×10.8
|
0.6572
|
0.77
|
35
|
5×6
|
123×0.25
|
44.5×11.3
|
46.4×12.2
|
0.8368
|
0.014
|
41
|
5×10
|
204×0.25
|
52.5×13.7
|
56.4×13.8
|
1.2294
|
1.469
|
59
|
5×16
|
323×0.25
|
59.5×15.1
|
58.1×14.8
|
1.6479
|
1.845
|
79
|
5×25
|
513×0.25
|
70×16.8
|
65.4×16.3
|
2.32
|
2.489
|
103
|
5×35
|
722×0.25
|
81×19.8
|
75.3×18.9
|
3.14
|
3.321
|
138
|
5×50
|
1026×0.25
|
90.5×21.3
|
99.5×23.5
|
4.077
|
4.851
|
160
|
6×1.5
|
48×0.20
|
35.3×8.9
|
38.4×8.8
|
0.474
|
0.558
|
17.5
|
6×2.5
|
51×0.25
|
39.5×9.5
|
43.6×9.7
|
0.593
|
0.728
|
21.7
|
6×4
|
82×0.25
|
45.8×10.3
|
46.6×10.2
|
0.768
|
0.871
|
33
|
6×6
|
123×0.25
|
52.8×11.3
|
57.5×12.2
|
0.9957
|
1.243
|
39
|
6×10
|
204×0.25
|
62.2×13.7
|
68×13.8
|
1.462
|
1.769
|
57
|
6×16
|
323×0.25
|
70.6×15.1
|
68.9×14.8
|
1.962
|
2.2
|
76
|
6×25
|
513×0.25
|
83.3×16.8
|
80.2×16.3
|
2.7696
|
3.022
|
99
|
6×35
|
722×0.25
|
96.3×19.8
|
90.9×18.9
|
3.7462
|
3.997
|
133
|
6×50
|
1026×0.25
|
108.8×22.3
|
118.5×23.5
|
5.0341
|
5.794
|
152
|
7×1.5
|
480×0.20
|
41.3×8.9
|
44.3×8.8
|
0.5467
|
0.644
|
17
|
7×2.5
|
51×0.25
|
45.5×9.5
|
50.4×9.7
|
0.678
|
0.843
|
21.5
|
8×1.5
|
48×0.20
|
47.4×8.9
|
50.2×8.8
|
0.627
|
0.334
|
16.5
|
8×2.5
|
51×0.25
|
48.5×8.6
|
57.2×9.7
|
0.7939
|
0.958
|
19.6
|
10×1.5
|
48×0.25
|
57.5×8.9
|
62.6×9.4
|
0.7643
|
0.963
|
16
|
10×2.5
|
51×0.25
|
62.9×9.5
|
72.6×10.4
|
0.8965
|
1.311
|
18.7
|
12×1.5
|
48×0.25
|
68.3×8.9
|
75.6×9.4
|
0.9094
|
1.209
|
15.6
|
12×2.5
|
51×0.25
|
75.5×9.5
|
86.3×10.4
|
1.1327
|
1.68
|
18
|
14×1.5
|
48×0.20
|
79.1×8.9
|
86.3×9.4
|
1.055
|
1.332
|
15
|
14×2.5
|
51×0.25
|
87.5×9.5
|
100.2×10.4
|
1.3145
|
1.818
|
16.5
|
16×1.5
|
48×0.20
|
89.9×8.9
|
54.4×16.6
|
1.199
|
1.516
|
14.5
|
16×2.5
|
51×0.25
|
101×9.5
|
56.8×18.7
|
1.514
|
2.071
|
15.5
|
19×1.5
|
48×0.20
|
106.1×8.9
|
65.8×18
|
1.417
|
1.981
|
14.2
|
19×2.5
|
51×0.25
|
119.3×9.5
|
69×20
|
1.791
|
2.549
|
15
|
