JVV,JVPV,DJVPV,JFH,JFPH,DJFPH計算機電纜

1.1 用途
        適用于計算機、弱電儀器、自動化控制設備等信號傳輸。
1.2 使用條件
        工作溫度:-40℃～+70℃(JVV、JVPV、,DJVPV型)，
                 -40℃～+70℃(JFH、,JFPH、,DJFPH型)；
        額定電壓:交流250V或直流500V 及以下；
        最小彎曲半徑:不下于成品外徑6倍。

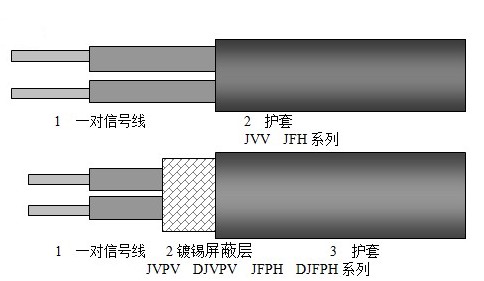

  1.3 結構




1.4 型號及規格

型   號	規           格		屏蔽形式
	標稱截面   mm2	對數
JVV	0.08，0.12，0.20，0.30，0.35，0.40，0.50，0.75，1.0，1.5	1～60	無屏蔽
JVPV	0.08，0.12，0.20，0.30，0.35，0.40，0.50，0.75，1.0，1.5	1～60	總屏蔽
DJVPV	0.08，0.12，0.20，0.30，0.35，0.40，0.50	1～48	對屏總屏
JFH	0.06，0.08，0.12，0.20，0.30	1～37	無屏蔽
JFPH	0.06，0.08，0.12，0.20，0.30	1～37	總屏蔽
DJFPH	0.06，0.08，0.12，0.20，0.30	1～37	對屏總屏

注：推薦采用對數系列：1，2，3，4，5，6，7，8，9，10，12，14，16，18，19，20，21，24，27，30，32，35，37，40，44，48，52，56，60
1.5 導體結構及導體直流電阻

標稱截面mm2	0.06	0.08	0.12	0.20	0.30	0.35	0.40
導體結構	7/0.10	7/0.12	7/0.15	12/0.15	16/0.15	19/0.15	23/0.15
20℃時最大直流電阻Ω/Km	371	254	163	95.0	71.2	57.8	49.6



標稱截面mm2	0.50	0.75	1.0	1.50
導體結構	28/0.15	42/0.15	32/0.20	48/0.20
20℃時最大直流電阻Ω/Km	40.1	26.7	20.0	13.7

1.6其他性能指標
a. 試驗電壓：經受工頻電壓試驗1000V不擊穿;
b. 絕緣電阻：20℃時不小于100MΩ·km
c. 阻燃型(ZR-)計算機電纜:阻燃性能符合GB/T18380.3—2001的B類要求;
 1.7 成品電纜最大外徑
JVV、JVPV、DJVPV型見表一
表一 JVV,  JVPV,  DJVPV型電纜最大外徑

規格	JVV型	JVVP型	DJVVP型		規格	JVV型	JVVP型	DJVVP型
2×2×0.08 2×2×0.12 2×2×0.20 2×2×0.30 2×2×0.35 2×2×0.40 2×2×0.50 2×2×0.75 2×2×1.0 2×2×1.5	4.3 5.0 5.9 6.7 6.8 7.9 8.3 9.3 10.7 13.0	4.7 5.5 6.4 7.6 7.7 8.5 8.8 10.3 11.3 13.6	5.2 5.8 6.7 8.0 8.1 8.8 9.1 — — —		3×2×0.08 3×2×0.12 3×2×0.20 3×2×0.30 3×2×0.35 3×2×0.40 3×2×0.50 3×2×0.75 3×2×1.0 3×2×1.5	4.7 5.5 6.6 7.8 8.0 8.8 9.1 10.9 12.0 14.5	5.2 5.9 7.5 8.4 8.6 9.4 10.1 11.4 13.1 15.2	5.9 6.7 8.4 9.4 9.5 10.7 11.0 — — —
4×2×0.08 4×2×0.12 4×2×0.20 4×2×0.30 4×2×0.35 4×2×0.40 4×2×0.50 4×2×0.75 4×2×1.0 4×2×1.5	5.2 6.0 7.7 8.6 8.9 10.1 10.6 12.0 13.8 16.5	5.6 6.5 8.3 9.1 9.5 10.7 11.1 13.1 14.4 17.2	6.6 8.1 9.2 10.9 11.1 12.0 12.9 — — —		5×2×0.08 5×2×0.12 5×2×0.20 5×2×0.30 5×2×0.35 5×2×0.40 5×2×0.50 5×2×0.75 5×2×1.0 5×2×1.5	5.5 6.6 8.3 9.2 9.5 10.9 11.4 13.4 14.7 17.7	5.9 7.5 8.8 10.2 10.6 11.4 12.1 14.1 15.4 18.4	7.6 8.8 10.5 11.9 12.2 13.5 14.0 — — —
6×2×0.08 6×2×0.12 6×2×0.20 6×2×0.30 6×2×0.35 6×2×0.40 6×2×0.50 6×2×0.75 6×2×1.0 6×2×1.5	5.8 6.9 8.7 10.2 10.6 11.5 12.1 14.2 15.6 18.8	6.3 7.8 9.2 10.8 11.1 12.2 13.2 14.9 16.7 19.5	8.3 9.4 11.2 13.2 13.5 14.5 15.1 — — —		7×2×0.08 7×2×0.12 7×2×0.20 7×2×0.30 7×2×0.35 7×2×0.40 7×2×0.50 7×2×0.75 7×2×1.0 7×2×1.5	6.1 7.7 9.1 10.7 11.0 12.1 13.1 14.9 16.8 19.8	6.5 8.3 10.1 11.2 11.6 13.2 13.8 15.5 17.5 20.7	8.7 10.3 12.0 14.0 14.3 15.4 16.0 — — —
8×2×0.08 8×2×0.12 8×2×0.20 8×2×0.30 8×2×0.35 8×2×0.40 8×2×0.50 8×2×0.75 8×2×1.0 8×2×1.5	6.3 7.9 9.5 11.1 11.4 13.0 13.5 15.4 17.5 20.6	6.7 8.5 10.5 11.7 12.1 13.6 14.2 16.5 18.2 21.9	9.1 10.9 13.1 14.7 15.1 16.6 17.3 — — —		9×2×0.08 9×2×0.12 9×2×0.20 9×2×0.30 9×2×0.35 9×2×0.40 9×2×0.50 9×2×0.75 9×2×1.0 9×2×1.5	6.5 8.1 10.1 11.4 11.8 13.2 13.9 15.7 17.9 21.5	6.8 8.6 10.6 12.0 12.8 13.8 14.4 16.7 18.4 22.1	9.6 11.4 13.8 15.4 15.7 17.4 18.2 — — —


表一 JVV,  JVPV,  DJVPV型電纜最大外徑(續)

規格	JVV型	JVVP型	DJVVP型		規格	JVV型	JVVP型	DJVVP型
10×2×0.08 10×2×0.12 10×2×0.20 10×2×0.30 10×2×0.35 10×2×0.40 10×2×0.50 10×2×0.75 10×2×1.0 10×2×1.5	6.7 8.5 10.6 11.9 12.2 13.9 14.5 16.9 18.7 22.4	7.5 8.9 11.0 12.9 13.2 14.4 15.1 17.5 19.3 23.1	10.5 12.0 14.3 16.5 18.2 18.9 — — —		12×2×0.08 12×2×0.12 12×2×0.20 12×2×0.30 12×2×0.35 12×2×0.40 12×2×0.50 12×2×0.75 12×2×1.0 12×2×1.5	7.7 9.1 11.3 13.2 13.6 14.9 15.6 18.3 20.2 24.3	8.1 9.6 11.9 13.8 14.2 15.4 16.1 18.8 21.3 25.0	11.1 13.3 15.3 16.6 18.2 19.6 — — —
14×2×0.08 14×2×0.12 14×2×0.20 14×2×0.30 14×2×0.35 14×2×0.40 14×2×0.50 14×2×0.75 14×2×1.0 14×2×1.5	8.1 10.1 12.1 14.1 14.5 15.8 17.1 19.5 22.0 26.5	8.6 10.6 13.1 14.6 15.1 16.8 17.6 20.0 22.7 27.2	12.0 14.1 16.7 18.9 19.3 21.3 22.2 — — —		16×2×0.08 16×2×0.12 16×2×0.20 16×2×0.30 16×2×0.35 16×2×0.40 16×2×0.50 16×2×0.75 16×2×1.0 16×2×1.5	8.6 10.7 13.2 14.9 15.3 17.2 18.0 20.6 23.3 28.1	9.0 11.1 13.8 15.4 15.8 17.7 18.6 21.7 24.0 28.7	13.0 14.9 17.6 19.9 20.5 22.6 23.4 — — —
18×2×0.08 18×2×0.12 18×2×0.20 18×2×0.30 18×2×0.35 18×2×0.40 18×2×0.50 18×2×0.75 18×2×1.0 18×2×1.5	8.9 11.2 13.9 15.6 16.5 18.0 18.9 22.0 24.4 39.5	9.4 11.8 14.4 16.6 17.1 18.6 19.5 22.7 25.1 30.1	13.6 15.5 18.5 21.5 21.9 23.7 24.6 — — —		19×2×0.08 19×2×0.12 19×2×0.20 19×2×0.30 19×2×0.35 19×2×0.40 19×2×0.50 19×2×0.75 19×2×1.0 19×2×1.5	9.1 11.4 14.2 16.0 16.8 18.5 19.4 22.6 25.1 30.1	9.6 12.0 14.7 16.9 17.4 19.0 19.9 23.2 26.3 30.8	13.9 15.8 18.8 21.9 22.4 24.2 25.2 — — —
20×2×0.08 20×2×0.12 20×2×0.20 20×2×0.30 20×2×0.35 20×2×0.40 20×2×0.50 20×2×0.75 20×2×1.0 20×2×1.5	9.4 11.7 14.4 16.7 17.2 18.8 19.8 23.0 25.6 30.8	10.2 12.2 15.0 17.3 17.7 19.4 20.5 23.7 26.8 31.5	14.2 16.6 19.3 22.3 22.8 24.6 26.3 — — —		21×2×0.08 21×2×0.12 21×2×0.20 21×2×0.30 21×2×0.35 21×2×0.40 21×2×0.50 21×2×0.75 21×2×1.0 21×2×1.5	9.6 11.9 14.7 17.1 17.6 19.3 20.2 23.5 26.7 31.5	10.5 12.9 15.3 17.6 18.2 19.8 21.3 24.2 27.4 32.6	14.4 16.9 19.6 22.8 23.3 25.2 26.8 — — —


表一 JVV,  JVPV,  DJVPV型電纜最大外徑(續)

規格	JVV型	JVVP型	DJVVP型		規格	JVV型	JVVP型	DJVVP型
24×2×0.08 24×2×0.12 24×2×0.20 24×2×0.30 24×2×0.35 24×2×0.40 24×2×0.50 24×2×0.75 24×2×1.0 24×2×1.5	10.5 13.0 15.5 18.0 18.6 20.4 21.8 24.9 28.3 33.8	10.9 13.5 16.5 18.6 19.1 21.5 22.4 25.5 28.9 34.4	15.2 17.9 20.8 24.1 24.6 27.2 28.3 — — —		27×2×0.08 27×2×0.12 27×2×0.20 27×2×0.30 27×2×0.35 27×2×0.40 27×2×0.50 27×2×0.75 27×2×1.0 27×2×1.5	11.0 13.6 16.7 18.9 19.5 21.8 22.9 26.7 29.7 35.5	11.4 14.2 17.3 19.5 20.0 22.4 23.5 27.4 30.4 36.2	16.0 18.7 22.3 25.3 26.4 28.6 29.7 — — —
30×2×0.08 30×2×0.12 30×2×0.20 30×2×0.30 30×2×0.35 30×2×0.40 30×2×0.50 30×2×0.75 30×2×1.0 30×2×1.5	11.4 14.2 17.5 19.8 20.4 22.8 24.0 28.0 31.1 37.3	12.0 14.7 18.0 20.5 21.5 23.4 24.6 28.6 32.2 38.4	17.1 19.6 23.3 27.0 27.6 29.8 31.1 — — —		32×2×0.08 32×2×0.12 32×2×0.20 32×2×0.30 32×2×0.35 32×2×0.40 32×2×0.50 32×2×0.75 32×2×1.0 32×2×1.5	11.8 14.5 17.9 20.4 21.3 23.4 24.6 28.7 32.5 38.7	12.8 15.1 18.5 21.5 22.0 24.1 25.3 29.4 33.1 39.6	17.5 20.0 23.9 27.7 28.4 30.7 32.3 — — —
